Solutions for Thread Gauge Failure After Spraying

Engineer asked Jul 03,2026
0

(Experimentally Verified Effective)

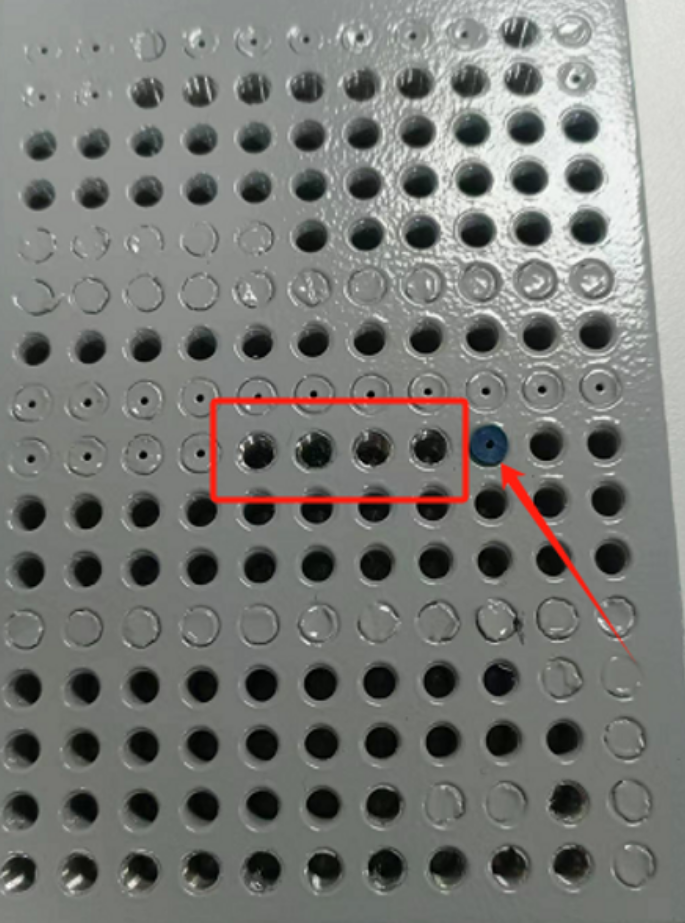

Problem Descript_ion: Standard sealing strips are used to block holes during spraying. Paint accumulates around the thread hole opening after coating, resulting in failure to pass the go thread gauge.

Improvement Plan 1: Manually chamfer holes with a chamfering cutter to clear paint buildup at hole edges; verification passed.

Disadvantage: Inconsistent chamfer sizes due to manual operation.

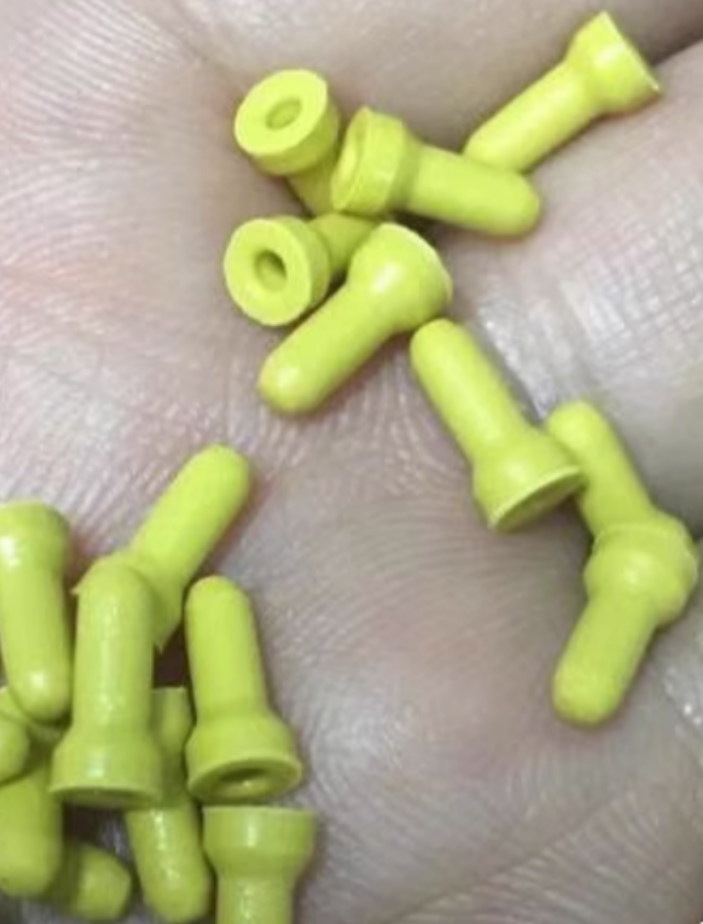

Improvement Plan 2: Switch to silicone thread plugs for hole blocking; trim excess plug material with a blade after installation.

Disadvantage: Higher material cost compared to sealing strips.
