Bead blast + Anodized color | Surface Finishes for Metal and Plastic Parts

Bead blast + Anodized color

Description

Anodizing creates a corrosion-resistant finish. Parts can be anodized in different colors—clear, black, red, and gold are most common—and is usually associated with aluminum. And with bead blast, the part surface is left with a smooth, matte appearance.(Note: 1.There will be a certain color difference between the actual color after anodizing and the above color board. 2.Rack marks are inherent to the anodizing process. When engineering a part that will be anodized, you'd better identify where the part will be racked. Typically, the racking location is chosen to minimize the visibility of the mark after the part is assembled.)

Technical properties


Sharp edges and burrs	Removed
Premium appearance availability	Yes
Tolerances	Met after surface finish

Colors

Applicable Materials

Aluminum

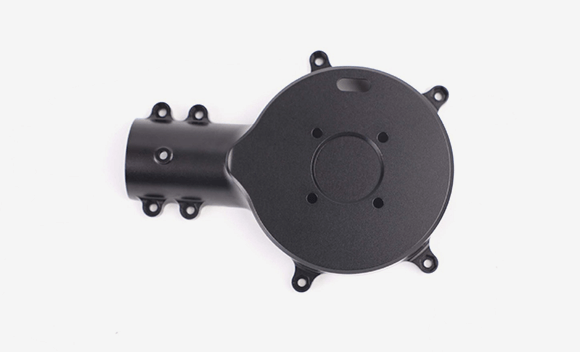

Example of an Bead blast + Anodized color part

Design considerations for Bead blast + Anodized color

Wear appropriate safety equipment, including goggles and a dust mask, to protect yourself from flying debris and dust generated during the bead blasting process.
Ensure that the material being bead blasted and anodized is compatible with the process. Some materials may not be suitable for this process, and different materials may require different bead blasting and anodizing parameters.
Control the anodizing parameters, including the voltage, current, and electrolyte solution, to achieve a uniform and attractive color finish.
Depending on the application, the surface may need to be cleaned after bead blasting and anodizing to remove any debris or particles generated during the process.

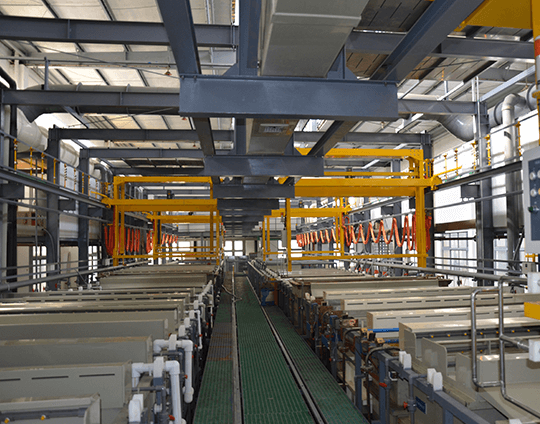

The Justway Bead blast + Anodized color process

Bead blast + Anodized color is a reliable and effective surface treatment process that delivers a high-quality and consistent finish. The process requires careful control of the bead blasting and anodizing parameters to achieve a uniform and attractive finish. Let’s break down the basic steps for Bead blast + Anodized color a part:

The surface is cleaned and prepared to ensure that it is free of dirt, oil, and other contaminants that could affect the bead blasting and anodizing process
The surface is bead blasted using a high-pressure air gun that propels small glass beads at the surface to create a uniform texture
The surface is anodized using an electrolytic process that creates a durable and attractive color finish
The anodized surface is allowed to dry and cur
The surface is inspected to ensure that it meets the desired specifications for color and texture
