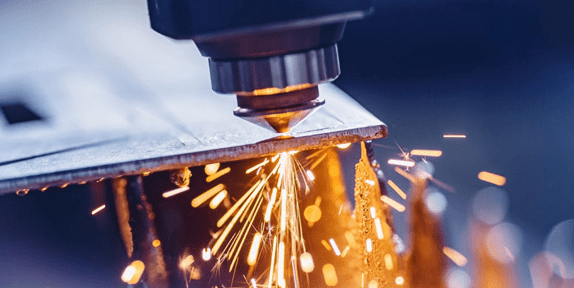

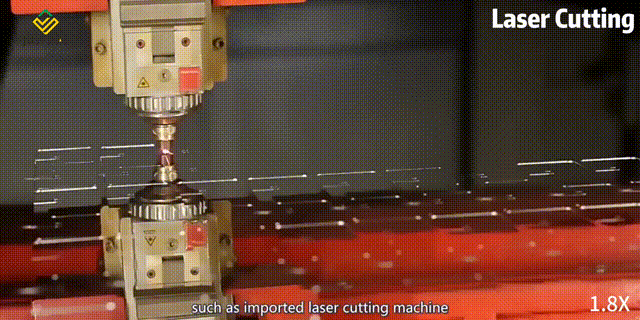

Size	Metric units	Imperial units
Max length	3000mm	118inch
Max thickness	10mm	0.4inch
Minimum feature size	1.6mm	0.06inch
Kerf (slit size)	0.5mm	0.02inch

Size

Metric units

Imperial units

Max length

3000mm

118inch

Max thickness

10mm

0.4inch

Minimum feature size

1.6mm

0.06inch

Kerf (slit size)

0.5mm

0.02inch

Aluminum	Stainless steel	Mild steel	Copper
Aluminum 5052	Stainless steel 304	Mild steel 1018	Copper 101
Aluminum 6061	Stainless Steel 316/316L		Copper C110
	Stainless steel 201		Copper 260 (Brass)
	Stainless Steel 301

Aluminum

Stainless steel

Mild steel

Copper

Stainless Steel 316/316L

Plastic
PMMA (Acrylic)
Carbon Fiber Plate

Plastic

PMMA (Acrylic)

Carbon Fiber Plate

FAQ's

What is sheet metal?

Sheet metal refers to a thin, flat piece of metal that can be formed and manipulated into various shapes and sizes. Sheet metal can be made from a variety of metals, including steel, aluminum, copper, brass, and nickel.

Sheet metal can be produced in a range of thicknesses, typically ranging from 0.006 inches to 0.25 inches, depending on the material and application. It can be produced in coils or sheets and can be cut, stamped, bent, or welded to create a variety of parts and products.

Sheet metal is commonly used in the manufacturing of a wide range of products, including:

1. Automotive parts: Sheet metal is used to make a variety of automotive parts, including body panels, bumpers, doors, and roofs.

2. Aerospace parts: Sheet metal is used to make components for aerospace structures, including wings, fuselages, and landing gear.

3. HVAC systems: Sheet metal is used in the fabrication of ductwork, air conditioning units, and furnace components.

4. Building construction: Sheet metal is used in the construction of roofs, gutters, and façades.

Sheet metal fabrication involves working with the metal to cut, form, and assemble it into the desired shape. Common sheet metal fabrication processes include cutting, punching, bending, and welding. These processes can be performed manually or using automated equipment, depending on the complexity of the part and the required production volume.

What types of materials are commonly used in sheet metal fabrication?

Sheet metal can be made from a range of different metals and alloys, each with their own unique properties, advantages, and disadvantages. Here are some of the most commonly used materials in sheet metal fabrication:

1. Steel: Steel is the most commonly used metal in sheet metal fabrication. It is a strong, durable, and cost-effective material that can be easily formed and welded. Steel is used to make a wide range of products, including automotive parts, appliances, and building materials.

2. Aluminum: Aluminum is a lightweight and corrosion-resistant metal, making it ideal for use in the aerospace, automotive, and construction industries. Aluminum is also readily available and easy to work with, making it a popular choice for sheet metal fabrication.

3. Copper: Copper is a highly conductive and corrosion-resistant metal that is often used in electrical and plumbing applications. It is also commonly used to make decorative objects and home furnishings.

4. Brass: Brass is a copper-based alloy that is often used in decorative applications due to its attractive golden color. It is also commonly used in the manufacture of musical instruments and plumbing fixtures.

5. Nickel: Nickel is a strong and corrosion-resistant metal that is often used in high-temperature applications, such as aerospace and industrial manufacturing. It is also used in the manufacture of coins and jewelry.

6. Titanium: Titanium is a lightweight, strong, and corrosion-resistant metal that is commonly used in the aerospace, military, and biomedical industries.

The choice of material used in sheet metal fabrication depends on the specific application, required properties of the finished product, and the cost.

What is the difference between sheet metal and plate metal?

Sheet metal typically refers to metal that is less than 6mm in thickness, while plate metal refers to metal that is 6mm or thicker.

What is the difference between sheet metal bending and sheet metal folding?

Sheet metal bending and sheet metal folding are both methods of shaping sheet metal into various forms, but they differ in the way that the metal is manipulated.

Sheet Metal Bending: Sheet metal bending is a process of forming sheet metal into a desired shape by bending the metal around a straight axis, using a press brake machine. A press brake is a machine that consists of upper and lower dies, which clamp the sheet metal securely and apply pressure to bend the material to the desired angle.

The bending process generally produces a V-shape, U-shape, or channel-shape in the sheet metal. The bend radius and angle can be controlled precisely using specialized tooling and bending dies.

Sheet Metal Folding: Sheet metal folding, also known as edge bending, is a process of forming sheet metal using a folding machine. The folding machine bends the metal along a straight axis or a curved line, producing a crisp and clean fold. The fold is typically created using a punch and a die, which grip and bend the metal along a straight or curved line, creating a fold range that can be limited to 180°.

Sheet metal folding is ideal for producing shapes with folded edges such as panels with flanges or boxes.

The choice between sheet metal bending and sheet metal folding will depend on the specific requirements of the part, including the desired shape, bend angle, and production volume. For larger volumes or parts requiring more precise and complex bends, sheet metal bending is often the preferred choice, while sheet metal folding is ideal for parts with straight edges and simple bends.

What is the minimum bend radius for sheet metal?

The minimum bend radius for sheet metal depends on several factors, including the material thickness, the type of material, and the tooling used to make the bend. As a general rule, the minimum bend radius for sheet metal should be at least equal to the material thickness.

For example, if the sheet metal is 1 mm thick, then the minimum bend radius should be 1 mm. However, certain materials may require a larger bend radius due to their physical properties. Materials that are more brittle or have a greater yield strength may require a larger bend radius to prevent cracking or deformation.

The tooling used to make the bend also plays a critical role in determining the minimum bend radius. The punch and die used to make the bend should be designed with a radius that matches the minimum bend radius of the material, ensuring that the bend is consistent and does not cause damage to the metal.

It's important to note that the minimum bend radius is not the same as the maximum bend angle. The maximum bend angle for sheet metal is generally around 180 degrees, although this can vary depending on the thickness and type of material being used. The minimum bend radius is a key consideration in sheet metal bending to ensure that the bend is precise, consistent and does not result in defects in the finished part.

Sheet Metal Design Practical Tips

Hello everyone, I’m Xiang, a sheet metal structural designer with over a decade of industry experience. I work closely with production shops daily on bending, welding, and laser cutting processes, and I’ve encountered countless manufacturing pitfalls over the years. Many designs look perfect on drawings yet prove unfeasible to bend on the shop floor, suffering from bending cracks and misaligned hole positions—issues I faced constantly early in my career.

Today I’ll skip overly theoretical jargon and share down-to-earth, actionable practical tips you can implement immediately to reduce manufacturing errors.

1. Material Selection: Match Specs to Requirements; Avoid Over-Thickening Sheets

Many junior designers arbitrarily specify thicker sheet metal out of concerns for structural rigidity, which drastically raises production costs while increasing bending difficulty. Below are standard material thickness guidelines for common applications ready for direct reference:

Standard cabinets, enclosures & general chassis: 1.2 mm / 1.5 mm cold rolled steel (CRS); compatible with standard tooling, zero bending complications
Load-bearing brackets & base structural components: 2.0 mm – 2.5 mm, sufficient for load stability
Lightweight cosmetic parts: 1.0–1.2 mm aluminum alloy; easy to machine with superior corrosion resistance
Humid outdoor environments: Stainless steel is mandatory. Cold rolled steel with paint coating is not a viable substitute, as rust rework will be inevitable down the line.

Quick Reminder: Standardize sheet thickness within a single product series to minimize tool changes and machine setup downtime for production.

2. Bending Design – The Most Error-Prone Process Stage

2.1 Standardize Internal Bend Radii; Prioritize R = Sheet Thickness

Example: For 1.5 mm sheet metal, set internal bend radius to 1.5 mm. Avoid varying radii on a single part, as frequent die swaps lead to dimensional inconsistencies. Increase radii for stainless steel parts to prevent surface cracking during bending.

2.2 Offset Holes Away From Bend Lines to Eliminate Hole Distortion

This is a common mistake among new designers: holes positioned too close to bend lines will stretch and deform during bending, rendering parts scrap. If structural constraints prevent repositioning holes, add stress relief notches or score grooves in advance to release internal stress and stop tearing & distortion.

2.3 Stress Relief Notches Are Mandatory for Closed Corner Joints

Closed right-angle corners without notches will consistently bulge and crack at edges during forming. Simplified design rule: Notch width ≥ sheet thickness for straightforward shop fabrication without complex calculations.

3. Stiffening Principle: Bend Formed Reinforcements Over Welded Stiffeners

When flat panels suffer deflection and flexibility, welding angle iron stiffeners is an inefficient default solution.

Core Rule: Prioritize bent integral reinforcements over welded reinforcements wherever possible.

Large flat panels: Form embossed stiffening ribs – zero extra cost, no welding distortion, drastically improved rigidity
Tall reinforced structures: Hemming & folded edge forming for one-piece construction, precise dimensions and smooth cosmetic surfaces
Assembled joint structures: Split components into single bent pieces where feasible to reduce assembly welding. Welding inevitably introduces distortion, requiring labor-intensive flattening and finishing that drives up coating costs.

4. Assembly Design: Reserve Tolerance Allowances for Shop Production

Mating fastener holes: Oversize holes by 0.2–0.3 mm unilaterally to compensate for cutting and bending tolerances, eliminating on-site hole reaming
Snap-fit structures: Snap thickness ≥ 1x sheet thickness; add stress relief notches at bend sections to prevent fracture during repeated assembly & disassembly
Contact mating surfaces: Avoid full-surface contact; incorporate clearance cutouts to accommodate minor sheet deformation and simplify assembly fit-up.

5. Clinch Fasteners & Welding Guidelines

Clinch nuts & studs: Maintain edge clearance greater than the outer diameter of clinch hardware to prevent bulging and cracking at sheet edges
Thin sheet welding: Skip full continuous welds, which induce severe distortion; intermittent spot welds deliver adequate structural strength
Cosmetic weld seams: Reserve sufficient grinding access space; eliminate blind weld corners to streamline surface finishing processes.

6. Three Critical Drafting Habits for New Sheet Metal Designers

Coordinate with production shops prior to modeling: Confirm existing bending die dimensions to align designs with available tooling and avoid custom die expenses
Produce prototype drawings for complex bent parts, review with bending technicians before finalizing 3D models
Include all critical annotations on production drawings: sheet thickness, material grade, burr orientation, bend radii, hole dimensions to cut down communication delays and errors.

Closing Notes

The core tenet of sheet metal structural design can be summed up simply: optimize for manufacturability, ease of assembly, minimal material waste, and controlled production costs.
