Sheet Metal Design Practical Tips

Last updated on Jul 27, 2026

Hello everyone, I’m Xiang, a sheet metal structural designer with over a decade of industry experience. I work closely with production shops daily on bending, welding, and laser cutting processes, and I’ve encountered countless manufacturing pitfalls over the years. Many designs look perfect on drawings yet prove unfeasible to bend on the shop floor, suffering from bending cracks and misaligned hole positions—issues I faced constantly early in my career.

Today I’ll skip overly theoretical jargon and share down-to-earth, actionable practical tips you can implement immediately to reduce manufacturing errors.

1. Material Selection: Match Specs to Requirements; Avoid Over-Thickening Sheets

Many junior designers arbitrarily specify thicker sheet metal out of concerns for structural rigidity, which drastically raises production costs while increasing bending difficulty. Below are standard material thickness guidelines for common applications ready for direct reference:

Standard cabinets, enclosures & general chassis: 1.2 mm / 1.5 mm cold rolled steel (CRS); compatible with standard tooling, zero bending complications
Load-bearing brackets & base structural components: 2.0 mm – 2.5 mm, sufficient for load stability
Lightweight cosmetic parts: 1.0–1.2 mm aluminum alloy; easy to machine with superior corrosion resistance
Humid outdoor environments: Stainless steel is mandatory. Cold rolled steel with paint coating is not a viable substitute, as rust rework will be inevitable down the line.

Quick Reminder: Standardize sheet thickness within a single product series to minimize tool changes and machine setup downtime for production.

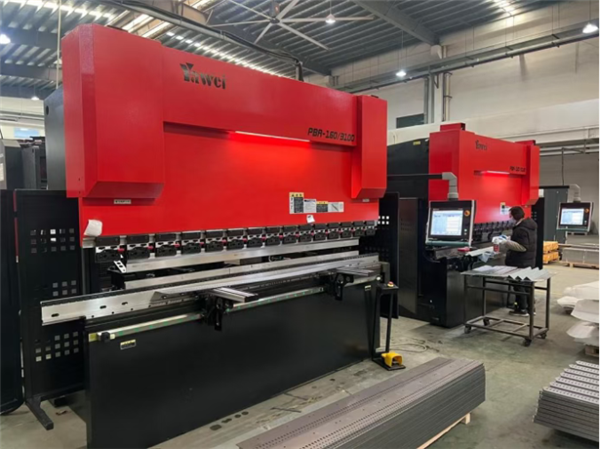

2. Bending Design – The Most Error-Prone Process Stage

2.1 Standardize Internal Bend Radii; Prioritize R = Sheet Thickness

Example: For 1.5 mm sheet metal, set internal bend radius to 1.5 mm. Avoid varying radii on a single part, as frequent die swaps lead to dimensional inconsistencies. Increase radii for stainless steel parts to prevent surface cracking during bending.

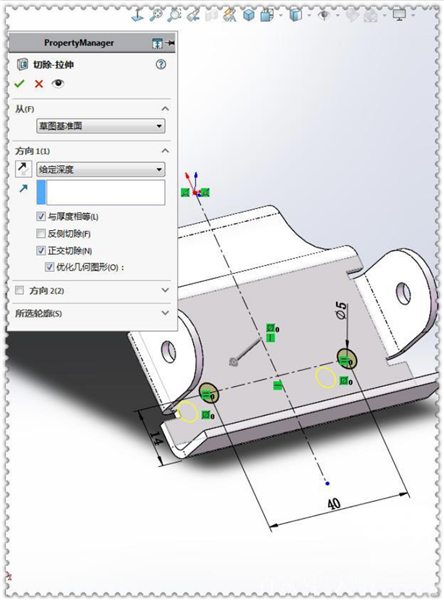

2.2 Offset Holes Away From Bend Lines to Eliminate Hole Distortion

This is a common mistake among new designers: holes positioned too close to bend lines will stretch and deform during bending, rendering parts scrap. If structural constraints prevent repositioning holes, add stress relief notches or score grooves in advance to release internal stress and stop tearing & distortion.

2.3 Stress Relief Notches Are Mandatory for Closed Corner Joints

Closed right-angle corners without notches will consistently bulge and crack at edges during forming. Simplified design rule: Notch width ≥ sheet thickness for straightforward shop fabrication without complex calculations.

3. Stiffening Principle: Bend Formed Reinforcements Over Welded Stiffeners

When flat panels suffer deflection and flexibility, welding angle iron stiffeners is an inefficient default solution.

Core Rule: Prioritize bent integral reinforcements over welded reinforcements wherever possible.

Large flat panels: Form embossed stiffening ribs – zero extra cost, no welding distortion, drastically improved rigidity
Tall reinforced structures: Hemming & folded edge forming for one-piece construction, precise dimensions and smooth cosmetic surfaces
Assembled joint structures: Split components into single bent pieces where feasible to reduce assembly welding. Welding inevitably introduces distortion, requiring labor-intensive flattening and finishing that drives up coating costs.

4. Assembly Design: Reserve Tolerance Allowances for Shop Production

Mating fastener holes: Oversize holes by 0.2–0.3 mm unilaterally to compensate for cutting and bending tolerances, eliminating on-site hole reaming
Snap-fit structures: Snap thickness ≥ 1x sheet thickness; add stress relief notches at bend sections to prevent fracture during repeated assembly & disassembly
Contact mating surfaces: Avoid full-surface contact; incorporate clearance cutouts to accommodate minor sheet deformation and simplify assembly fit-up.

5. Clinch Fasteners & Welding Guidelines

Clinch nuts & studs: Maintain edge clearance greater than the outer diameter of clinch hardware to prevent bulging and cracking at sheet edges
Thin sheet welding: Skip full continuous welds, which induce severe distortion; intermittent spot welds deliver adequate structural strength
Cosmetic weld seams: Reserve sufficient grinding access space; eliminate blind weld corners to streamline surface finishing processes.

6. Three Critical Drafting Habits for New Sheet Metal Designers

Coordinate with production shops prior to modeling: Confirm existing bending die dimensions to align designs with available tooling and avoid custom die expenses
Produce prototype drawings for complex bent parts, review with bending technicians before finalizing 3D models
Include all critical annotations on production drawings: sheet thickness, material grade, burr orientation, bend radii, hole dimensions to cut down communication delays and errors.

Closing Notes

The core tenet of sheet metal structural design can be summed up simply: optimize for manufacturability, ease of assembly, minimal material waste, and controlled production costs.
