CNC Machining DFM Guidelines & Size Capabilities Quick Reference

Last updated on Oct 26, 2026

A quick reference guide to standard recommended values vs. maximum/minimum manufacturing limits for CNC prototyping & production.

Key Notes for Design Engineers:

Recommended Values: Standard tooling, stable yield, optimal lead time, and normal cost. Priority choice for DFM.

Extreme Limits: Requires special micro-cutters, high-speed spindles, or special setups. Incurs higher cost, longer lead times, and reduced yield. Prior engineering confirmation required.

Max Dimensions: Refers to maximum effective machining volume (excluding fixture/clamp clearance), not bare machine stroke.

Material Baseline: Aluminum 6061. For Stainless Steel, Titanium, or Hardened Steel, increase wall/slot minimums by 1 step. Plastics deform easily under heat; enlarge wall thickness accordingly.

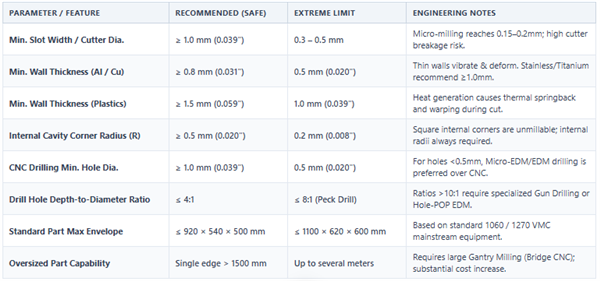

01. 3-Axis & 4-Axis CNC Milling (Vertical Machining Center)

02.5-Axis CNC Milling (AC Trunnion Machine)

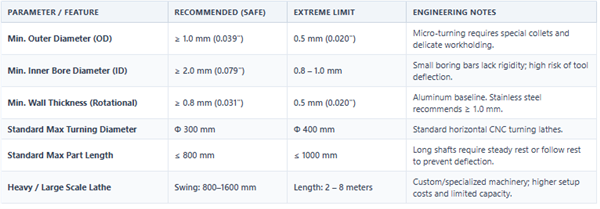

03.CNC Turning & Lathe Machining

04.Threading Capabilities (Internal Metric)

05.Small Component Workholding & Fixturing Limits

Standard Stock Raw Size

≥ 5 × 5 × 2 mm

Standard vise, soft jaws, or standard modular clamping can be reliably used for medium to high volume production runs.

Micro Part Handling (< 5mm)

Adhesive Fixtures / Vacuum Chucks + Micro CNC

Yield rate drops significantly. Recommended primarily for functional prototypes, not scalable for high-volume mass production.

06.Mandatory DFM Constraints & Guidelines

Max Part Dimensions ≠ Machine Axis Travel: Always reserve 50–100 mm safety margin for clamps, fixtures, tool clearance, and anti-collision zones.

Machine Table Weight Capacity: Exceeding table load limits compromises motion accuracy, degrades surface finish, and risks permanent spindle/bed damage.

4-Axis / 5-Axis Rotational Envelope: Always evaluate the full 3D rotational interference sphere rather than static X/Y/Z machine travel limits.

Slender Shafts & Thin-Walled Structures: Even if physical size fits inside table boundaries, chatter and chatter-induced deformation will cause tight tolerances to fail.

Narrow Slots (< 0.3mm) & Micro Holes (< 0.5mm): Prefer Wire EDM, Sinker EDM, or Micro-EDM drilling over conventional mechanical CNC milling or drilling.

Download the attachment:CNC Machining DFM Guidelines & Size Capabilities Quick Reference.pdf
