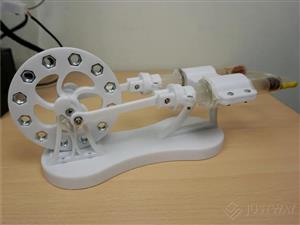

3D Printed Stirling Engine Type Alpha
My version of 3D printable Stirling engine. You can see a bit of the process of assembly and operation of the engine here: https://www.youtube.com/watch?v=kttaajHHPeY
Check my I3 Mega ULTIMATE upgrade guide! There is a lot of knowledge which may help You get the best 3D printing results. You will find it here: http://bit.ly/2OVbu5Z
Tips:
Make sure that Your printer is calibrated well before printing.

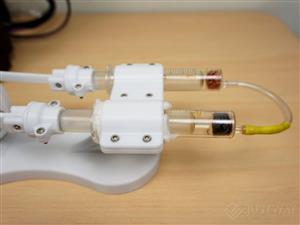

Do not fix syringes too tight because glass will bend a little and it will create a lot of friction inside.

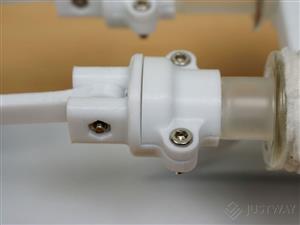

Pistons must be polished with fine sandpaper to move freely inside cylinders, but without losing too much pressure.
Angle between the cranks must be 90 degrees.
Part list:
12 x M8 Nut
12 x M3x10 Screw
18 x M3 Nut
2 x M3 self-locking nut
8 x M3x14 Screw
4 x M3 Washer
6 x M4 Washer
4 x M4 Nut
1 x M4 at least 44mm long screw with countersunk head. You need to cut it to right lenght.
2 x 604ZZ bearing: http://bit.ly/2JMp75J
4 x 683ZZ bearing: http://bit.ly/2qwAiHr
2 x 10 ml glass syringe: http://bit.ly/2p2ebJl
Heat resistant tubing to connect the syringes.
Heat insulating material.
Thin copper wire.
(These are affiliate links.)
Printing part list:
2 x connecting_rod
2 x flywheel_support
2 x piston_mount_part_1.stl
2 x piston_mount_part_2.stl
Every other part needs to be printed once.
Print Settings
Printer:
ANET A6
Supports:
Yes
Resolution:
0.2 mm
Infill:
30% or more
Notes:
I have printed it with PLA but the base was not stiff enough. STL files have been fixed a bit to help with that, but printing the base with ABS may be a good idea.
3D Printed Stirling Engine Type Alpha
