Spline connections between spline shafts and spline sleeves generally deliver reliable performance with minimal relative movement between mating parts. However, abnormal, rapid spline wear is sometimes observed in service.

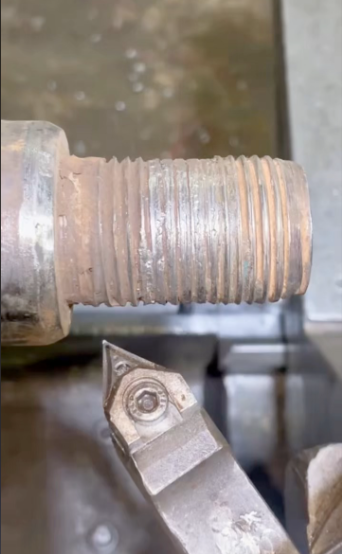

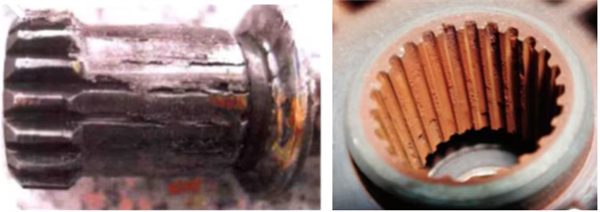

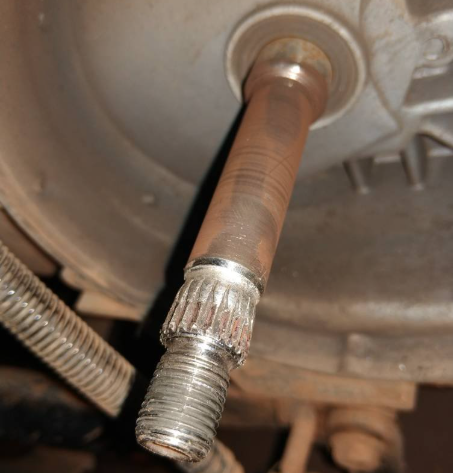

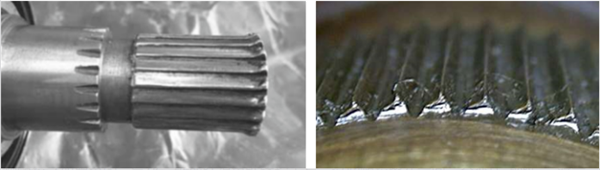

Typical signs include thinning spline teeth, abundant metallic abrasive debris, and even fully worn-down tooth tips.
Below is a breakdown of all potential root causes for targeted troubleshooting when such failures occur.
First, inspect the concentricity of the spline fit. If the axes of the internal spline sleeve and external spline shaft are eccentric or angularly misaligned, tiny, high-frequency relative sliding will occur between tooth surfaces per full rotation. This micro-sliding ruptures the protective lubricant film, bringing microscopic metal peaks into direct contact. Adhesion and tearing follow rapidly, forming hard oxide particles (black ferric oxide or reddish rust powder). Trapped between spline teeth, these particles act like abrasive sandpaper and trigger severe abrasive wear on tooth surfaces.
Second, verify lubrication status. Even splines with static fit or only slight axial sliding require adequate lubrication. If no grease is applied during assembly, or centrifugal force flings all lubricant away under high rotational speeds, the separating oil film vanishes. Under high contact stress, direct metal-to-metal contact induces adhesive wear, resulting in instant scoring and rapid material spalling on tooth surfaces.
Design flaws constitute another critical factor, especially improper fit tolerances with excessive backlash. During startup, shutdown, forward/reverse rotation, or gear shift shocks, violent impact collisions take place between internal and external spline teeth. Such impact loads generate extreme localized contact stress, leading to plastic deformation and fatigue spalling of tooth surfaces.
Insufficient manufacturing precision amplifies wear as well. Excessive circumferential pitch error, tooth profile error, or lead error means torque intended to be shared evenly across all teeth is actually borne by only a small number of localized contact points. These overloaded teeth endure contact stress several times the design limit, failing prematurely and propagating damage across the entire spline set quickly.
Heat treatment quality directly impacts service life. If the surface hardness of the spline shaft or sleeve is too low to withstand extrusion stress, the soft material offers poor shear and wear resistance under high torque transmission. Tooth surfaces undergo widespread yielding and extrusion deformation and get rapidly worn flat. When both internal and external splines feature identical low hardness, galling between matching soft metal pairs will additionally occur.
Finally, severe torsional vibration and torque overload must be considered. Splines coupled to equipment with strong pulsating torque such as diesel engine flywheels and piston pumps generate high-frequency torsional vibration throughout the system. Even with low average torque, peak alternating torque induced by vibration can multiply the rated load, leaving tooth surfaces under persistent overloading and triggering severe fatigue wear and microcrack initiation.
The above points provide clear failure analysis logic for your reference. Feel free to share this article with colleagues in need.
