Case Study: Root Cause Analysis & Optimization Solutions for Thread Go-Gauge Failure in Machined Parts

by: Aug 12,2026 779 Views 0 Comments Posted in Case studies

CNC Machining Quality Engineering Thread Defect Analysis Root Cause Analysis Process Optimization Surface Treatment Masking

Author: Machining & Quality Engineer @ Justway

Category: CNC Machining / Process Optimization / Quality Engineering

Executive Summary

During quality inspection of a precision machined aluminum housing component, thread inspection failed to meet acceptance criteria using a standard Thread Go-Gauge (通规). The Go-gauge stopped prematurely or felt excessively tight in multiple workpieces.

Through systematic root cause analysis, our engineering team identified multiple contributing factors across machining, post-processing, and surface coating operations. By implementing targeted corrective actions, we resolved the issue completely, achieving a 100% thread acceptance rate in serial production.

1. Problem Identification & Initial Analysis

During inspection, several internal threaded holes failed the Go-gauge test. Further investigation revealed three primary defect modes:

A. Mechanical Damage on Thread Flanks

Testing soft aluminum threads with standard steel gauges before anodizing led to minor local indentations and damage on the thread flanks, causing the Go-gauge to bind or stop.

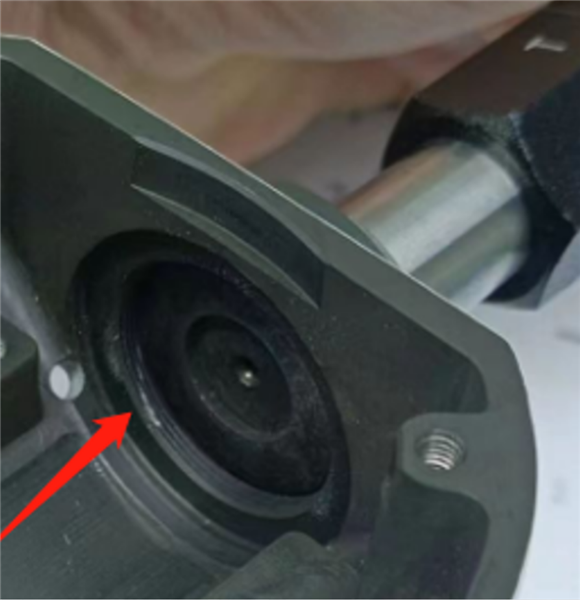

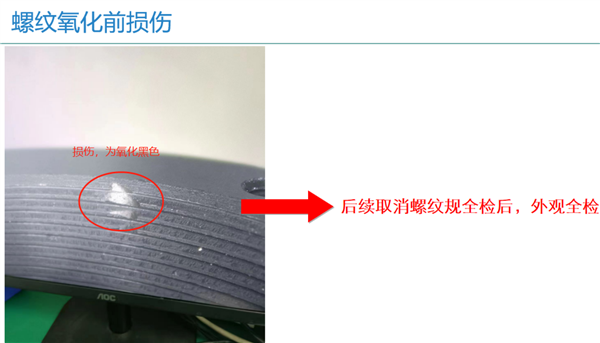

📍 [Thread Damage / 螺纹氧化前损伤]

(Shows raw aluminum exposure/damage on the thread surface prior to anodizing)

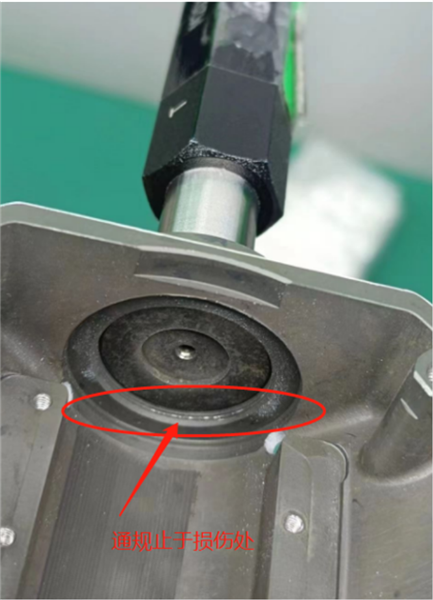

📍 [Gauge Stopped by Damage / 通规止于损伤处]

(Shows the Go-gauge binding/stopping exactly at the damaged thread area)

B. Paint Accumulation Inside Thread Grooves

During the external painting process, paint splashed through two adjacent thru-holes and accumulated inside the internal thread grooves, creating interference for the Go-gauge.

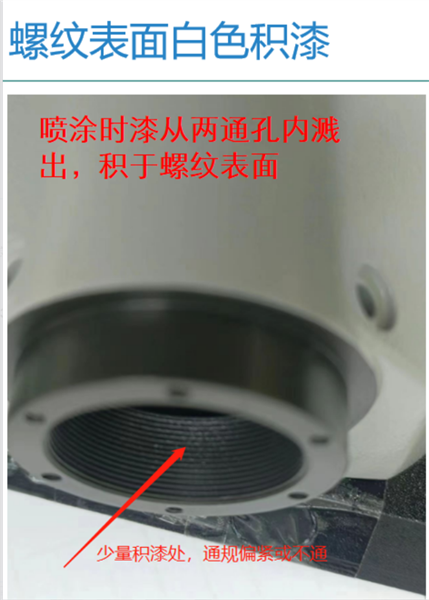

📍 [Paint Overspray / 螺纹表面白色积漆]

(Shows white paint accumulation in the thread grooves causing tight fit or gauge blockage)

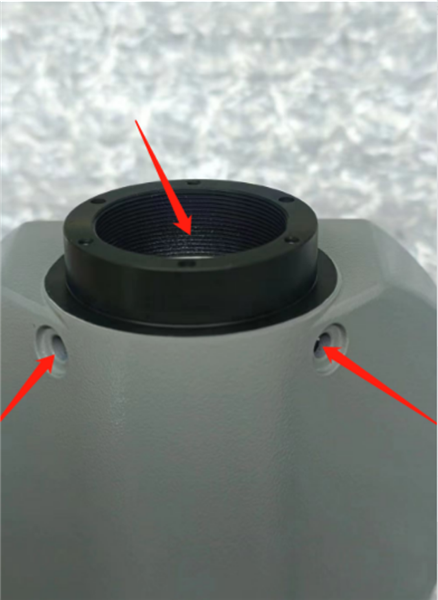

📍 [Paint Ingress Path / 喷涂时漆从两通孔内溅出]

(Shows the entry point where paint splashed through adjacent thru-holes into the threaded bore)

C. Bore & Taper Inconsistencies

The Standard Inspection Process (SIP) lacked explicit control for the pre-thread minor diameter 19.5+/-0.01.

Insufficient workholding rigidity led to minor thread taper toward the bottom of the hole.

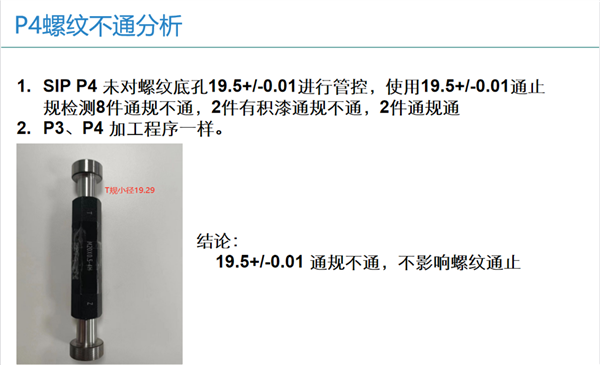

📍 [ Minor Diameter Gauge Test / P4 螺纹不通分析]

(Shows the thread gauge inspection on minor diameter 19.5+/-0.01

2. Root Cause Analysis (RCA)

  • Machining & Rigidity: Inadequate clamping rigidity caused minor thread taper; thread pitch diameter was running near the lower tolerance limit.
  • Tooling Variance: Uncontrolled tool brands and geometries caused dimensional variations.
  • Inadequate Masking: Former masking plugs failed to prevent paint overspray from entering via nearby thru-holes.
  • Handling & Flow: Full gauge inspection before anodizing caused physical damage to soft raw aluminum threads.

3. Corrective Actions & Process Optimization

To eliminate these root causes, we executed targeted improvements across machining, tooling, masking design, and process routing:

Step 1: Machining & Tooling Improvements

  • Program Compensation: Updated G-code to add taper clearance at the thread end to compensate for clamping deflection.
  • Tool Standardization: Validated and locked down specific cutting tool brands and types under controlled tool sheets.
  • Custom Gauge Control: Custom-ordered an oversized (+0.015) Thread Go-Gauge for in-process inspection, formally registered in the SIP.

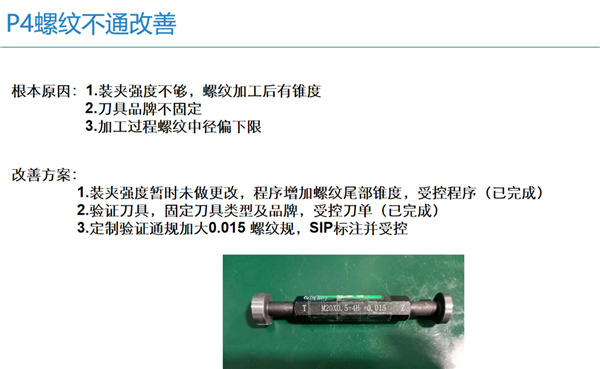

📍 [Custom Gauge & Root Cause / P4螺纹不通改善]

(Shows the customized +0.015 thread gauge M20X0.5-4H +0.015)

Step 2: Masking & Coating Optimization

Redesigned Masking Fixture: Developed custom masking plugs/fixtures to tightly seal both the threaded bore and adjacent thru-holes during painting.

New Cleaning Protocol: Added an post-anodize ultrasonic cleaning step (70°C water, 3min) followed by water rinse, air drying, and baking at 60°C for20min.

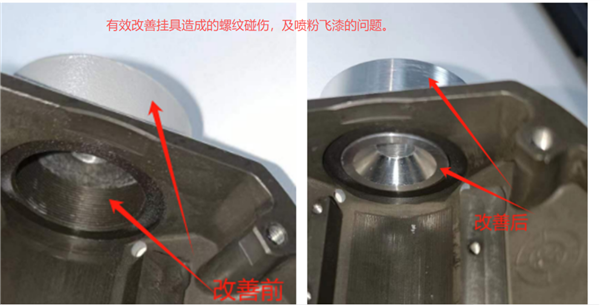

📍 [Masking Comparison / 改善前 vs 改善后]

(Shows Before Improvement with paint ingress vs. After Improvement with clean, well-sealed threads)

Step 3: Optimized Manufacturing Process Flow

We updated the official process flow to ensure proper sequence and protection of internal threads:

Heat Treatment->4‑Axis CNC->Lathe 1->Lathe 2->Deburring->Anodizing->Inspection->Cleaning->Internal Coating->Outsourced Painting

Inspection Strategy Update: Replaced full hard-gauge testing prior to anodizing with 100% visual inspection, shifting full thread gauge testing to post-treatment to avoid thread damage.

4. Results & Key Takeaways

  • 100% Thread Compliance: Go-gauge pass rate reached 100% across serial production batches.
  • Zero Paint Residue: New masking fixtures completely eliminated paint accumulation in thread grooves.
  • Standardized SOP/SIP: All G-code, tooling sheets, inspection plans, and supplier masking SOPs have been updated and locked under controlled documentation.
  • Engineering Takeaway: Achieving high-quality internal threads on coated or painted aluminum parts requires looking beyond CNC cutting parameters. Custom masking fixtures, optimized process routing, and proper gauge handling are equally essential for defect-free manufacturing.
