Mechanical Reliability: Advanced Threaded Insert Installation and Precision Marking

A 3D printed part often serves as a chassis for a larger mechanical system. Two critical factors determine its assembly success: the structural integrity of threaded inserts and the legibility of functional markings. At Justway, we specialize in secondary operations that transform a polymer shell into a robust, industrial-grade assembly.

1. Eliminating Threaded Insert Failure

The most common failure in 3D printed assemblies is the "pull-out" or "spinning" of brass threaded inserts.

The Problem: If the pre-drilled hole is too large, the insert lacks friction; if too small, the localized stress cracks the resin or nylon.

Justway’s Installation Protocol:

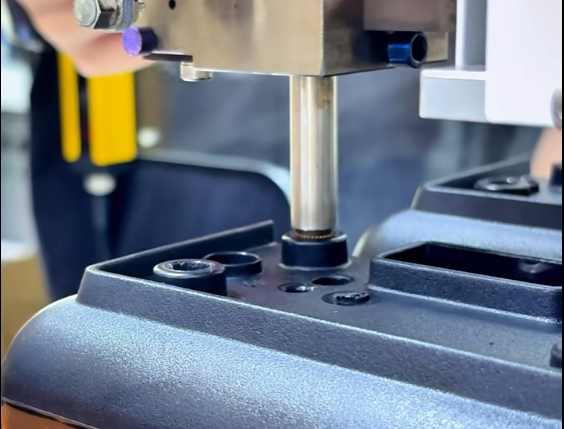

• Thermal Staking & Ultrasonic Insertion: For thermoplastic materials (SLS Nylon), we utilize controlled thermal insertion. This melts a thin layer of material around the knurling, creating a permanent mechanical bond as it re-solidifies.
• Optimized Hole Geometry: We implement a tapered hole design in the slicing stage. This ensures that the insert is perfectly centered and that the displaced material flows into the knurling grooves, increasing pull-out resistance by up to 40%.
• Post-Cure Insertion for SLA: For thermoset resins, we precision-drill after printing or use specialized epoxy-bonded inserts to ensure the brittle nature of the resin doesn't lead to micro-cracking during assembly.

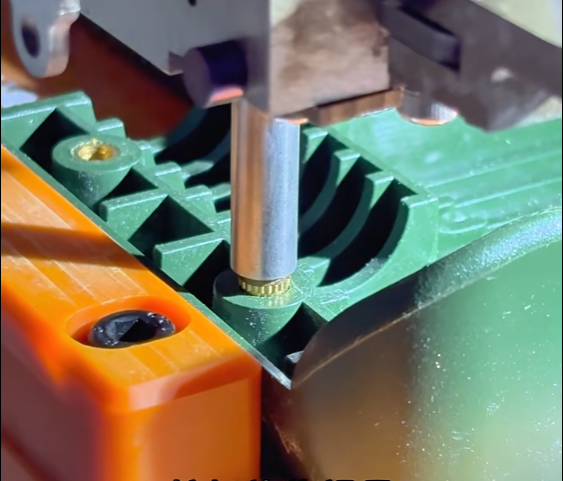

"Precision Thermal Staking: Ensuring maximum pull-out resistance by controlling the material flow around the threaded insert."

2. Precision Silkscreen & Laser Marking

Functional markings (logos, port labels, warnings) must be sharp, durable, and accurately positioned.

The Challenge of Surface Texture: On 3D printed surfaces, ink can "bleed" into the layer lines, or laser engraving can appear charred and illegible.

The Justway Solution:

• High-Resolution Silk Screening: We use high-mesh counts and UV-curable inks that sit on top of the surface without bleeding, ensuring text as small as 4pt remains crisp.
• Vector-Based Laser Marking: Our fiber and CO2 lasers are calibrated to the specific absorption rate of each resin. This allows for high-contrast marking (white on black, or dark on light) without damaging the structural skin of the part.
• Positioning Fixtures: We 3D print custom assembly jigs for every silkscreen job to ensure the graphic alignment is consistent across a 100-part batch, maintaining a positional tolerance of ±0.2mm.

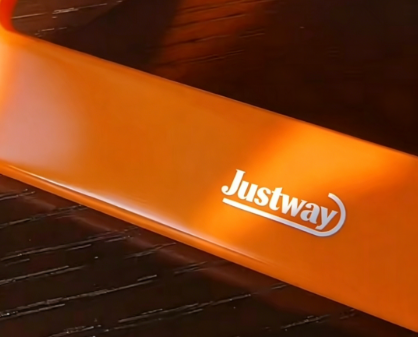

"High-Resolution Graphics: Our UV-curable inks and custom alignment jigs ensure crisp, bleed-free markings even on complex geometries."

3. Why These Details Define Quality

Engineering is a game of millimeters. By mastering the interface between the 3D printed substrate and mechanical hardware, Justway ensures that your final product isn't just a prototype, but a reliable tool ready for the production line.

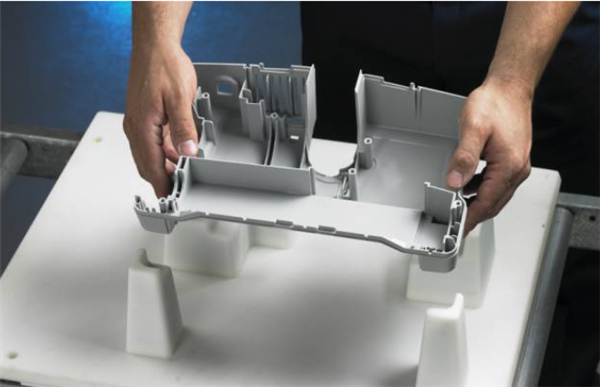

"Batch Consistency: Utilizing custom-printed fixtures to maintain ±0.2mm positional accuracy for all secondary operations."
