A 3D printed part that "looks good" but fails to fit its mating component is a manufacturing failure. Achieving high-level assembly precision requires more than just high-end hardware; it requires a deep understanding of material shrinkage, thermal expansion, and mechanical calibration. At Justway, we specialize in managing the microscopic deviations that dictate whether an assembly succeeds or fails.
1. Solving Dimensional & Assembly Deviations
Dimensional errors in 3D printing are rarely linear. They often fluctuate based on the part's volume, geometry, and the orientation of the build.
- Root Cause Analysis: Resin shrinkage during UV curing and thermal contraction in powder-bed fusion (SLS/SLM) can cause "undersized" features. Conversely, over-exposure or light leakage can lead to "oversized" holes.
- Justway’s Assembly Protocol:
- Standard Clearance Design: For functional interlocking parts (e.g., shafts and housings), we recommend a minimum clearance of 0.15mm to 0.2mm. This accounts for the inherent surface roughness and minor layer deviations.
- Scaling Factor Compensation: We apply proprietary "Shrinkage Compensation" formulas in our slicing engine. By scaling the CAD model slightly (e.g., 100.2%) prior to printing, we ensure the final cooled part matches the nominal 1:1 dimensions.

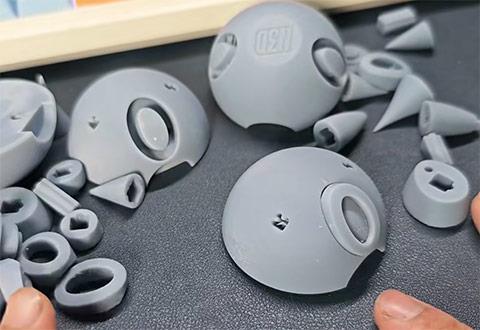

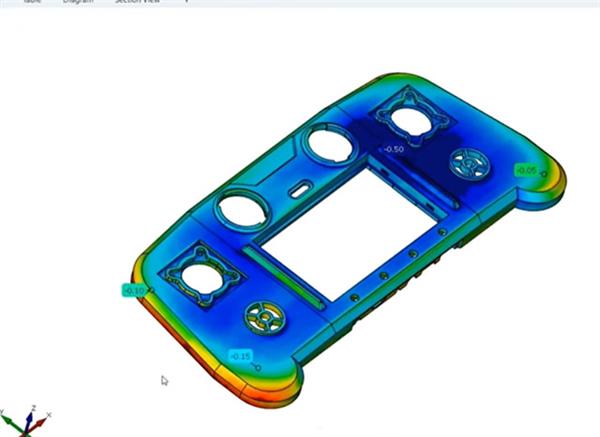

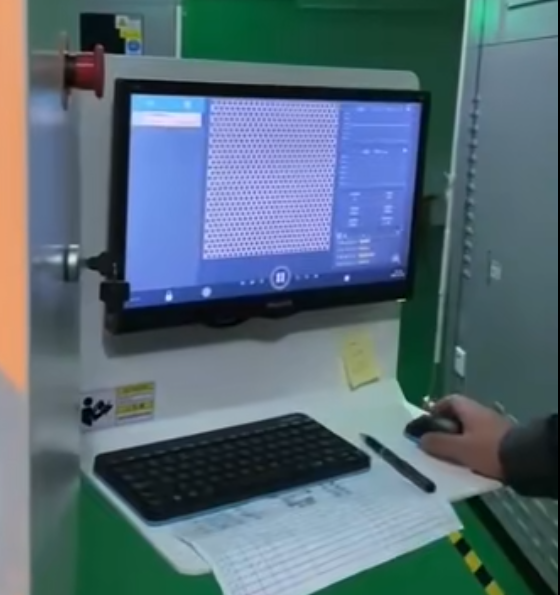

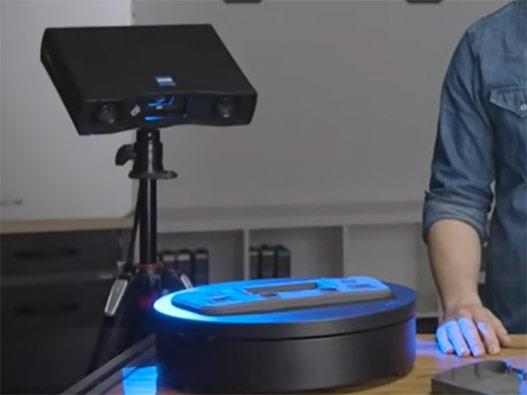

- CMM Verification: For high-precision projects, our QC team utilizes Coordinate Measuring Machines (CMM) to verify critical dimensions across X, Y, and Z axes, ensuring they fall within our ±0.1% to ±0.2% tolerance window.

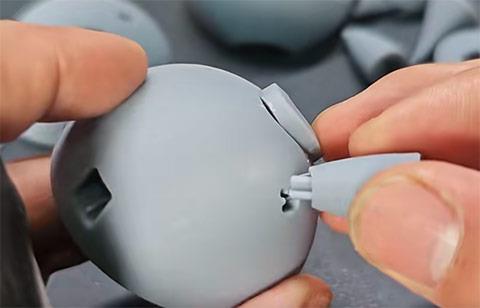

Optimized 0.15mm clearance for smooth mechanical interlocking.
2. Troubleshooting Specific Precision Issues
"Precision" is often lost in the translation from digital pixels to physical atoms.
- The Z-Axis Accumulation Challenge: Inconsistent layer bonding or mechanical lead-screw tension can lead to Z-height discrepancies.
- Justway’s Technical Solution:
- Laser Spot Calibration: We calibrate the laser focus diameter daily. A "fuzzy" laser spot creates inaccurate boundaries; a crisp, calibrated spot ensures sharp corners and accurate hole diameters.
- Dynamic Layer Leveling: Our industrial SLA machines utilize vacuum-recoating systems to ensure each new layer of liquid resin is perfectly level, preventing "slanted" prints that ruin assembly fit.
- Material-Specific Calibration: Since every material has a unique "Thermal Expansion Coefficient," we maintain separate calibration profiles for each resin and powder type in our inventory.
3. Why Precision Fit Matters to Your Bottom Line
Precision is the difference between a project that stays on schedule and one that is mired in costly redesigns. By combining advanced metrology with factory-floor experience, Justway delivers parts that are assembly-ready out of the box, reducing your time-to-market and secondary machining costs.
